Pedestrian barriers

Pedestrian

3D

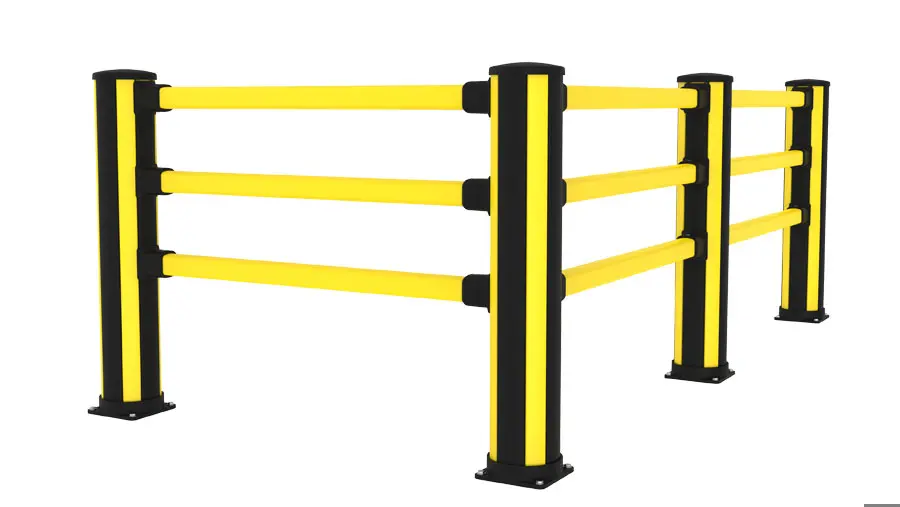

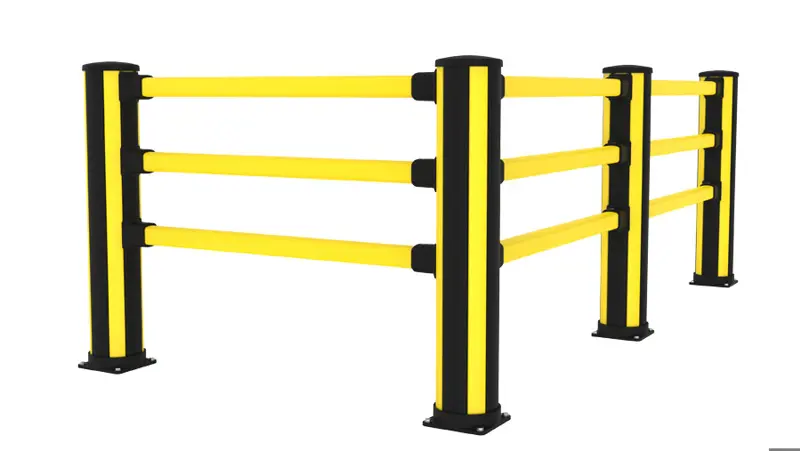

Use the X-Protect Pedestrian barrier configuration to define pedestrian routes and protect from light duty impacts. It is also possible to combine with a pedestrian gate. The pedestrian gate is self closing, provided with a universal handle and width is adjustable from 690-1210 mm.

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

  • Posts

    6 Articles
    CAD Article Number Description Height (mm) Length (mm) Color
    BCE0-116-00P3 Pedestrian end 1160 Zinc Yellow
    Graphite Black
    1
    BCC1-116-00P3 Pedestrian corner 1160 Zinc Yellow
    BCC0-116-00P3 Pedestrian corner 1160 Zinc Yellow
    Graphite Black
    1
    BCM1-116-00P3 Pedestrian mid 1160 Zinc Yellow
    BCM0-116-00P3 Pedestrian mid 1160 Zinc Yellow
    Graphite Black
    1
    BCE1-116-00P3 Pedestrian end 1160 Zinc Yellow
  • Hand rails

    5 Articles
    CAD Article Number Description Length (mm) CC (mm) Color
    RCP1-177-0200 Hand rail extrusion 1170 2000 Zinc Yellow
    RCP1-127-0150 Hand rail extrusion, C-C=1500mm, RAL 1018 yellow 1270 1500 Zinc Yellow
    RCP1-077-0100 Hand rail 770 1000 Zinc Yellow
    RCP1-047-0070 Hand rail 470 700 Zinc Yellow
    RCP1-027-0050 Hand rail 270 500 Zinc Yellow
  • Gate

    1 Articles
    CAD Article Number
    GCP8-069-0121
    2

Downloads

Pedestrian

Product information

X-Protect Pedestrian

Assembly guide

X-Protect | Impact protection

Brochure

X-Protect Technical | Impact protection

Brochure

Product information

Use the X-Protect Pedestrian barrier configuration to define pedestrian routes and protect from light duty impacts. It is also possible to combine with a pedestrian gate. The pedestrian gate is self closing, provided with a universal handle and width is adjustable from 690-1210 mm.

X-Protect is a unique approach to safety barriers. Unrivalled modularity, using only a few system components and damping that is built in to create a barrier system that changes with your work place. X-Protect allows rapid transformation, repair or replacement of existing barriers and bespoke configurations are limitless.



Impact test results
Area of impact Load Equivalent to 90° Deflection Force to fixings
Centre of barrier C - C as below
1500mm 4000 J 2500 kg
6.4 km/h
5000 kg
4.5 km/h
360mm 14.3 kN
2000mm 5000 J 2500 kg
7.2 km/h
5000 kg
5 km/h
490mm 18.7 kN
Posts
End post 1900 J 2500 kg
4.4 km/h
5000 kg
3.1 km/h
NA * 10 kN
Mid post 1900 J 2500 kg
4.4 km/h
5000 kg
3.1 km/h
NA * 8.4 kN

 * Deflection of posts is equivalent or less than that of the rail/s and is not considered to be critical for product selection. Performance is tested at height of the lowest rail. The post will perform better for lower strikes and deflection.
