X-Tray for X-Guard

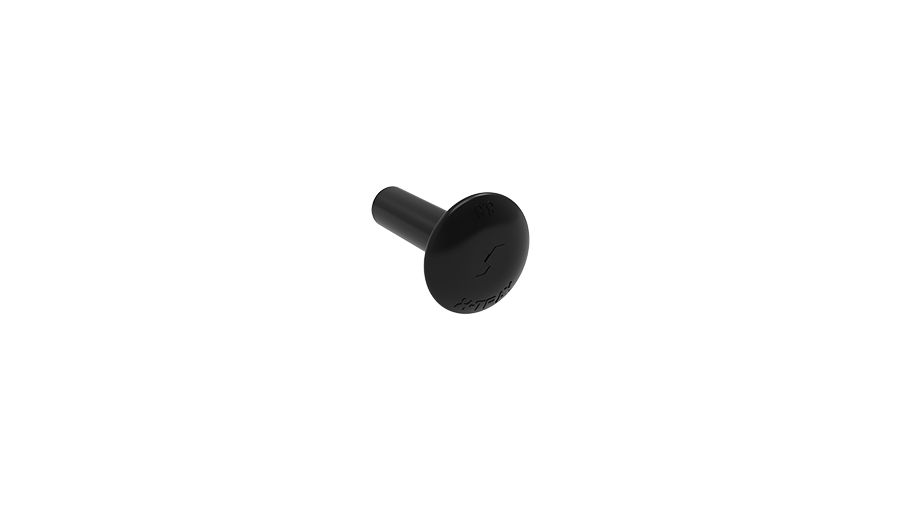

Bolt/Flange nut

3D

Only one bolt model is required for mounting your X-Tray system.

One M8 carriage bolt with a square shoulder to save you having to hold against when you tighten the nut. The bags are stand-up and re-closable.

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

CAD Article Description Surface Treatment
2761 X61 Bolt M8x27 Black Zink
1

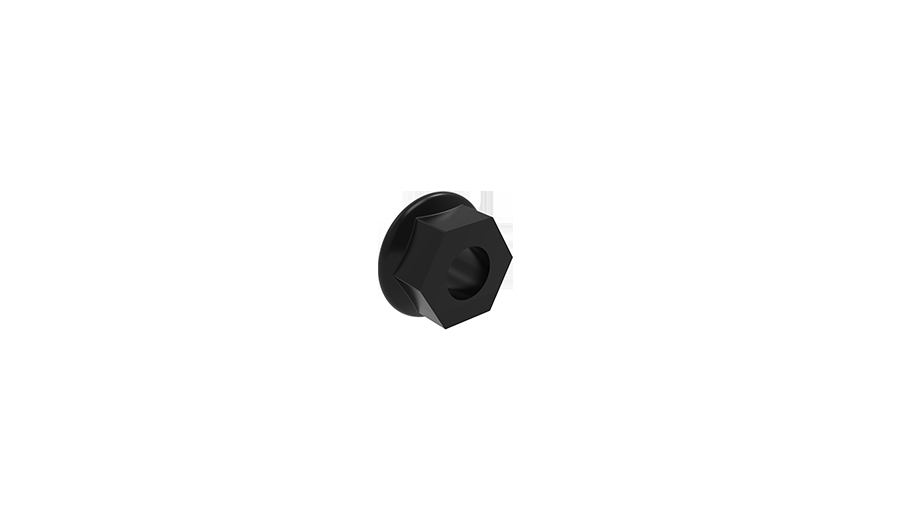

2762 X62 Flange Nut M8 Black Zink
1
7100-031 Expander Bolt M8x65 Zinc Plated
7100-070 Self drilling screw, washer head 4.2x19 Zinc Plated
1
