Locks and switches

X-It

3D

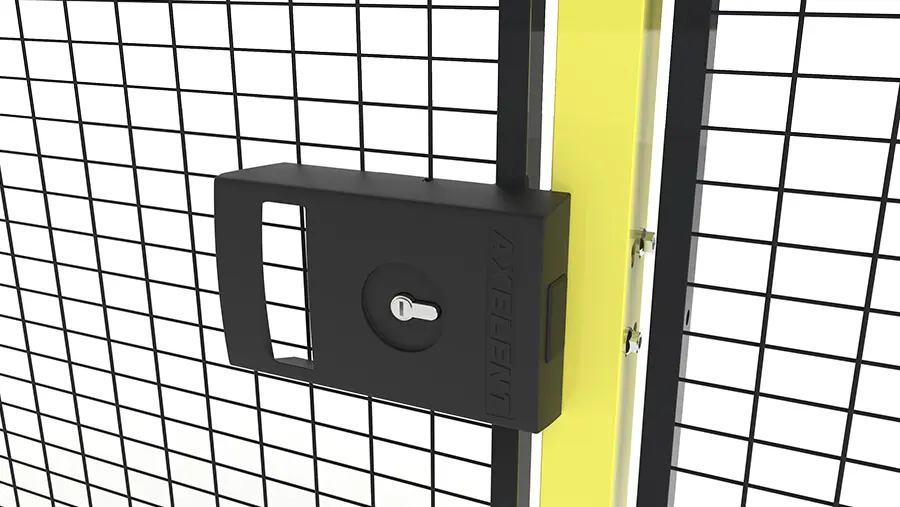

Axelent X-It is a keyed cylinder lock designed primarily for all our modular mesh panel systems for machine guarding, industrial/warehouse. Thanks to the unique construction and it’s simple assembly, the lock can also be used for similar third party products/systems available on the market. The l...

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

  • X-It Cylinder lock

    6 Articles
    CAD Article Description Position
    XIT-L01-101 Cylinderlock X-It compl, left mech, hinge door Left
    1 1
    XIT-L01-301 Cylinderlock X-It compl, left mech, single sliding door Left
    1 1
    XIT-L01-401 Cylinderlock X-It, left mech, slidingdoor with centrelock Left
    1 1
    XIT-R01-101 X-It Cylinder lock, hinge door, RH Right
    1 1
    XIT-R01-301 X-It Cylinder lock, sliding door, RH Right
    1 1
    XIT-R01-401 X-It Cylinder lock, sliding door with center lock, RH Right
    1 1

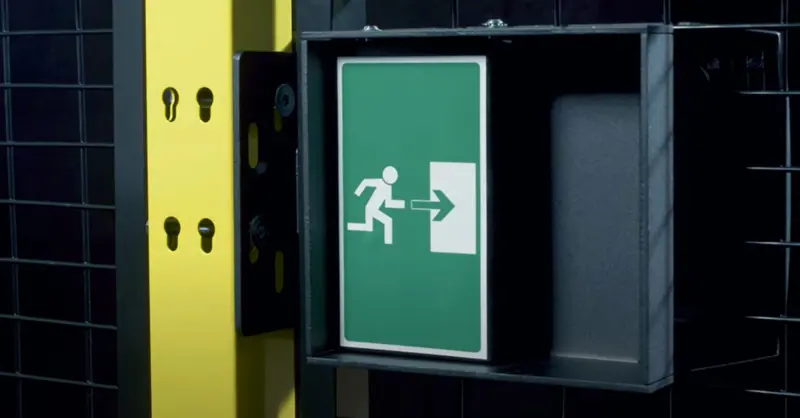

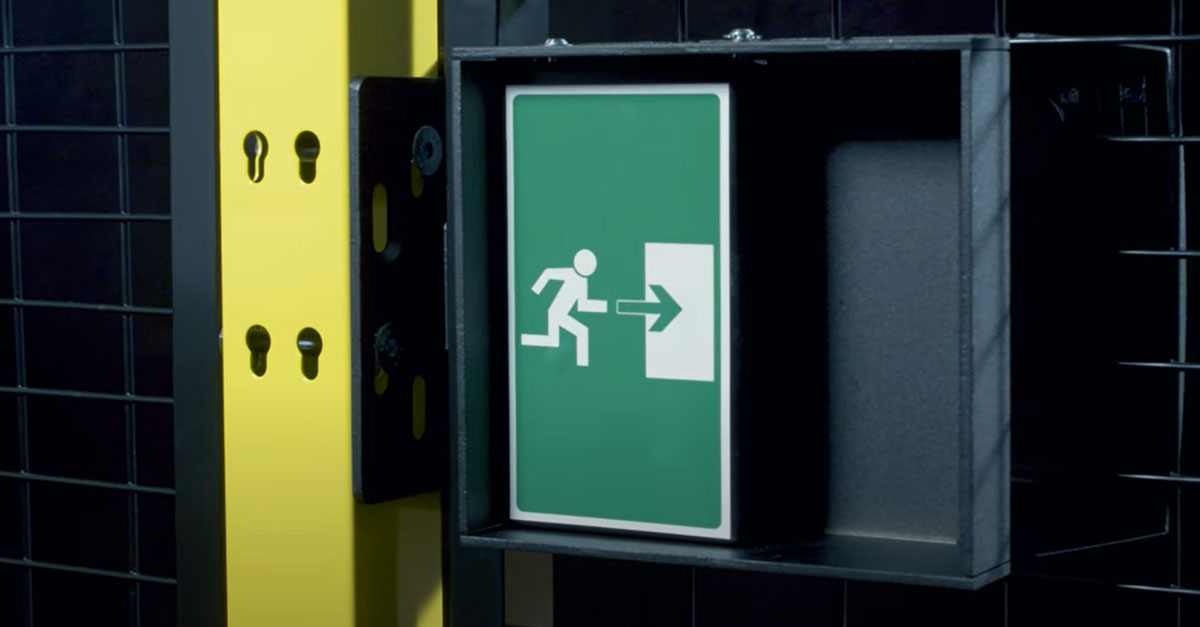

  • X-It cylinder lock with escape release function

    6 Articles
    CAD Article Description Position
    XIT-L14-101 Cylinder lock X-It, left with panic function, single hinge door Left
    2 1
    XIT-L14-301 Cylinder lock X-It, left with panic function, sliding door Left
    2 1
    XIT-L14-401 Cylinder lock X-It, left with panic function, sliding door center lock Left
    2 1
    XIT-R14-101 X-It “Slam Shut”, escape release function, hinge door, RH Right
    2 1
    XIT-R14-301 Cylinder lock X-It, right with panic function, sliding door Right
    2 1
    XIT-R14-401 Cylinder lock X-It, right with panic function, sliding door center lock Right
    2 1
  • X-It Electric

    6 Articles
    CAD Article Description Position
    XIT-L09-101 X-It Electric, esc.rel.function, hinge door, LH Left
    2 1
    XIT-R09-101 X-It Electric, esc.rel.function, hinge door, RH Right
    2 1
    XIT-R09-301 X-It Electric, esc.rel.function, sliding door, RH Right
    2 1
    XIT-L09-301 X-It Electric, esc.rel.function, sliding door, LH Left
    2 1
    XIT-L09-401 X-It “Slam Shut”, esc.rel.function, sliding door center lock, LH Left
    2 1
    XIT-R09-401 X-It Electric, esc.rel.function, sliding door center lock, RH Right
    2 1
CAD Article Description Color
G3059-2 Lock plate for X-it and MGB, for plastic & metal sheet panel Graphite Black (RAL 9011)
1

Downloads

X-It locks

Product information

X-Guard Technical

Brochure

Product information

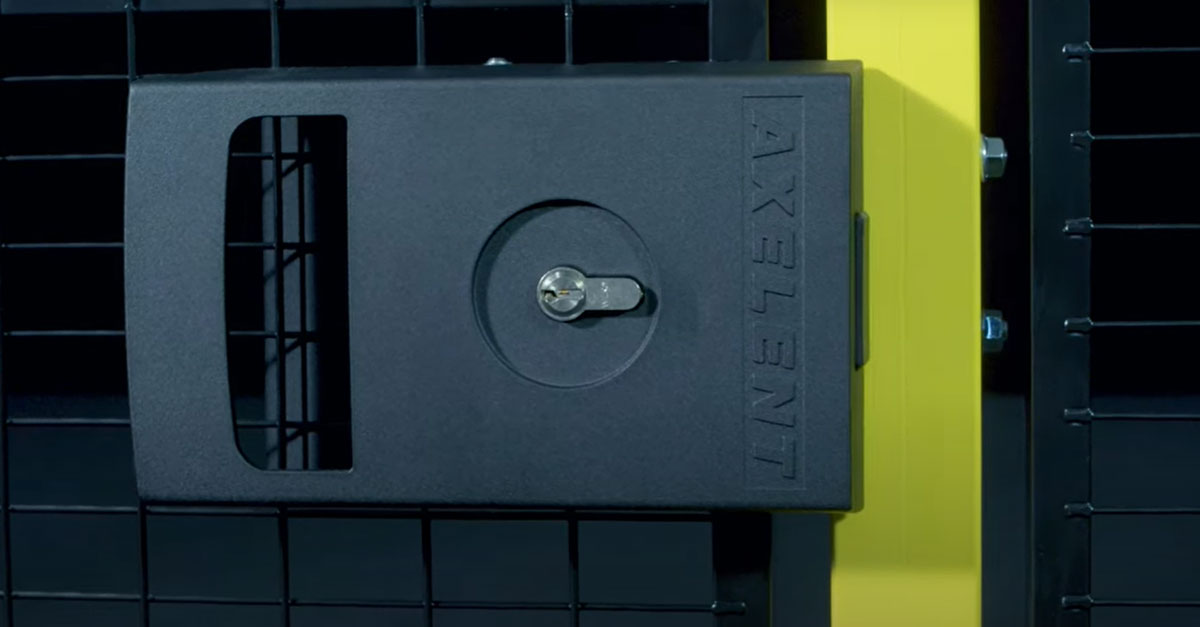

Axelent X-It is a keyed cylinder lock designed primarily for all our modular mesh panel systems for machine guarding, industrial/warehouse. Thanks to the unique construction and it’s simple assembly, the lock can also be used for similar third party products/systems available on the market.

The lock is a unique design that requires no additional lock housing, just add a standard cylinder such as Euro. The lock is robust with a cover in metal to withstand tough conditions, and is tested and approved according to SS-EN 12209:2016. X-It fits for both hinge or sliding doors.

The lock can also be combined with a mechanical panic / emergency unit. The product is patent pending.

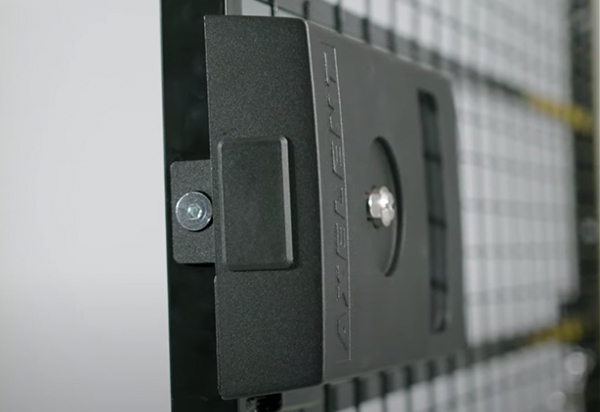

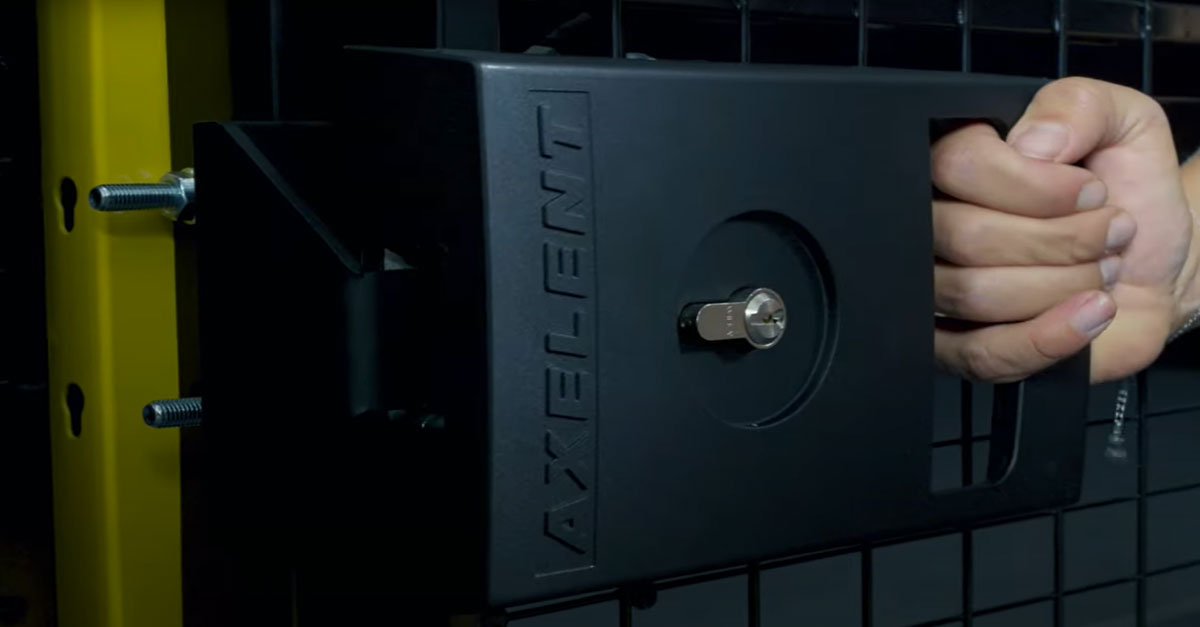

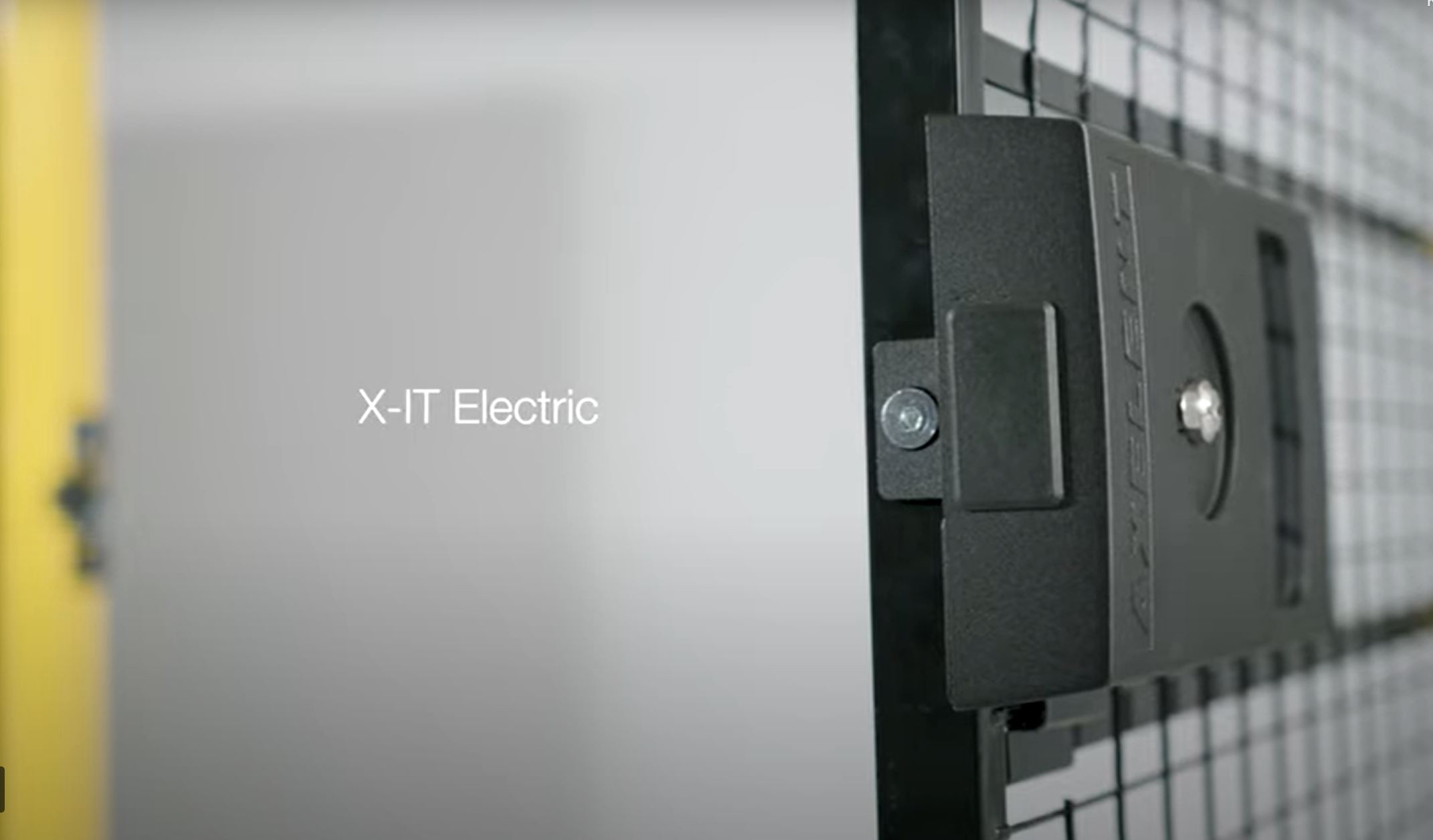

X-It Electric

Can be used in various places within warehouse and production environments, preferable in relation to
already installed access systems. In case of power failure the lock has an escape release function on the inside.

  • Light to indicate open or locked
  • Cylinder lock with mechanical key that overrides the electronic function
  • Compatible with most electric access lock systems such as RFID, card readers, Pin code units etc. The electric access lock system is not included.

X-It advantages

  • Robust construction
  • Unique locking function
  • Convenient
  • Flexible, fits for both hinge or sliding door
  • Ordered in right or left execution
  • Simple assembly
  • Tested and approved according to SS-EN 12209:2016
  • Extended functions possible
  • Certified product
  • Supplied in a specially designed box
  • The lock is patent pending
  • Possibility to block closure with padlock for service and maintenance (Lockout/Tagout)
