Doors

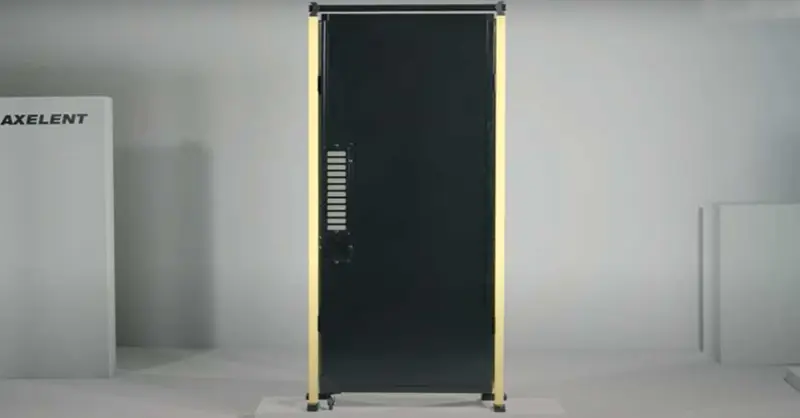

Single hinge door

3D

Single sided-hinged doors are usually used as an access door, or as emergency exits depending on the lock mechanism selected.

Maximum width is 1500 mm. *The maximum width varies depending on the used locking solution. (Posts, handles and panels are not included in the door package. Opening dimensions may be limited depending on the type of lock chosen.)

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

  • Height max 2500

    6 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts

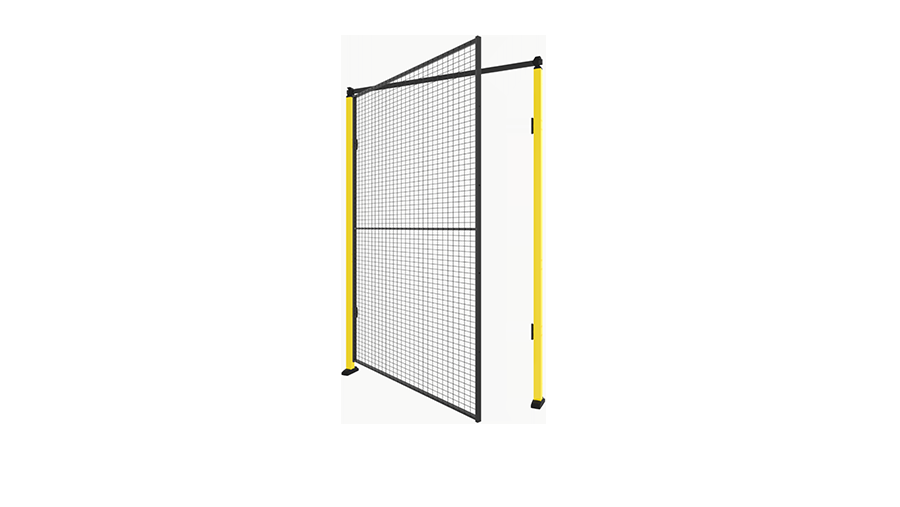

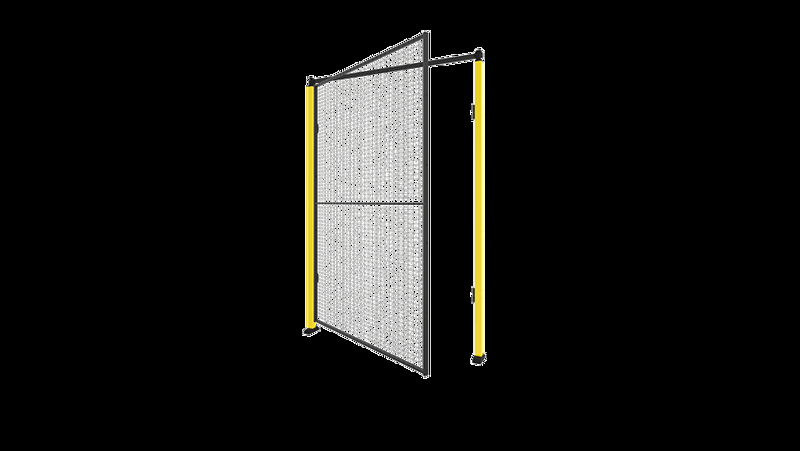

    D10-XXX150A Single hinge door with upper frame 1455 2500 Mesh Classic 50x50
    1 2
    D11-XXX150A Single hinge door w/o upper frame 1455 2500 Mesh Classic 50x50
    1 2
    D30-XXX150A Single hinge door with upper frame 1450 2500 Mesh Premium 70x70
    2 2
    DP10-XXX150A Single hinge door with upper frame 1445 2300 Plastic
    Sheet metal
    Classic 50x50
    2 2
    DP11-XXX150A Single hinge door w/o upper frame 1445 2300 Plastic
    Sheet metal
    Classic 50x50
    Premium 70x70
    2 2

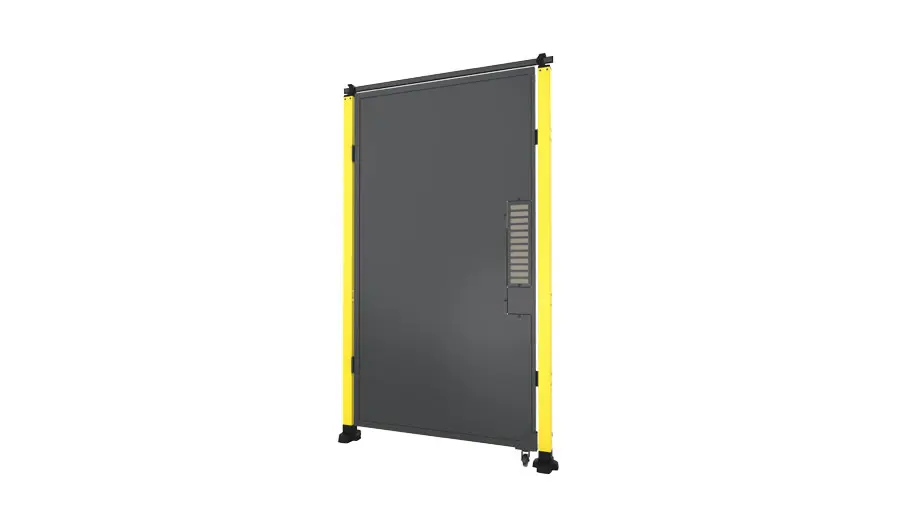

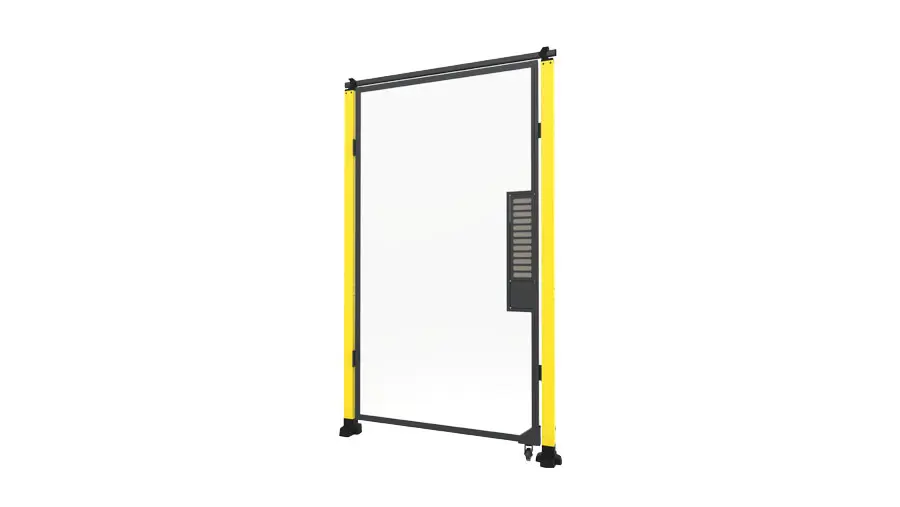

    DP30-XXX150A Single hinge door with upper frame 1450 2300 Plastic
    Sheet metal
    Premium 70x70
    2 2
  • Height min 2755

    3 Articles
    CAD Article Description Max Opening Width (mm) Min Height (mm) Max Height (mm) Panel Fits Posts
    D10-XXX150B Single hinge door with upper frame 1455 2755 3255 Mesh Classic 50x50
    1 2
    D11-XXX150B Single hinge door w/o upper frame 1455 2755 3250 Mesh Classic 50x50
    1 2
    D30-XXX150B Single hinge door with upper frame 1450 2755 3250 Mesh Premium 70x70
    2 2
