Pedestrian barriers

Pedestrian with impact

3D

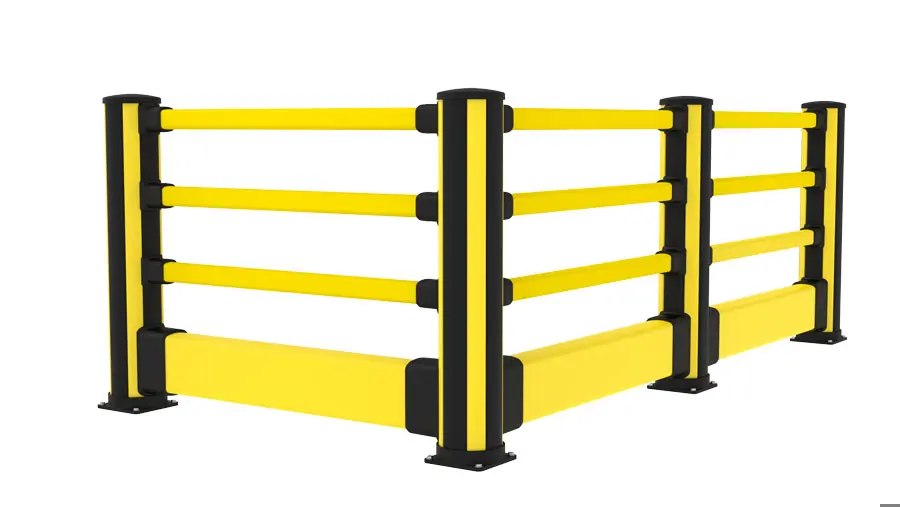

Use the X-Protect Pedestrian + Impact barrier configuration to protect walkways from medium duty vehicles where there is an increased risk of ground level impacts. It is also possible to combine with a pedestrian gate. The pedestrian gate is self closing, provided with a universal handle and widt...

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

CAD Article Description Height (mm) Length (mm) CC (mm) Color
BCC0-116-I1P3 Pedestrian + Impact corner 1160 Zinc Yellow (RAL 1018)
Graphite Black (RAL 9011)
1
BCC1-116-I1P3 Pedestrian + Impact corner 1160 Zinc Yellow (RAL 1018)
BCE0-116-I1P3 Pedestrian + Impact end 1160 Zinc Yellow (RAL 1018)
Graphite Black (RAL 9011)
1
BCE1-116-I1P3 Pedestrian + Impact end 1160 Zinc Yellow (RAL 1018)
BCM0-116-I1P3 Pedestrian + Impact mid 1160 Zinc Yellow (RAL 1018)
Graphite Black (RAL 9011)
1
BCM1-116-I1P3 Pedestrian + Impact mid 1160 Zinc Yellow (RAL 1018)
Graphite Black (RAL 9011)
RCI1-027-0050 Impact rail 270 500 Zinc Yellow (RAL 1018)
RCI1-047-0070 Impact rail 470 700 Zinc Yellow (RAL 1018)
RCI1-077-0100 Impact rail 770 1000 Zinc Yellow (RAL 1018)
RCI1-127-0150 Impact rail 1270 1500 Zinc Yellow (RAL 1018)
RCI1-177-0200 Impact rail 1770 2000 Zinc Yellow (RAL 1018)
RCI1-227-0250 Impact rail 2270 2500 Zinc Yellow (RAL 1018)
RCI1-277-0300 Impact rail 2770 3000 Zinc Yellow (RAL 1018)
RCP1-027-0050 Hand rail 270 500 Zinc Yellow (RAL 1018)
RCP1-047-0070 Hand rail 470 700 Zinc Yellow (RAL 1018)
RCP1-077-0100 Hand rail 770 1000 Zinc Yellow (RAL 1018)
RCP1-127-0150 Hand rail 1270 1500 Zinc Yellow (RAL 1018)
RCP1-177-0200 Hand rail 1770 2000 Zinc Yellow (RAL 1018)

Downloads

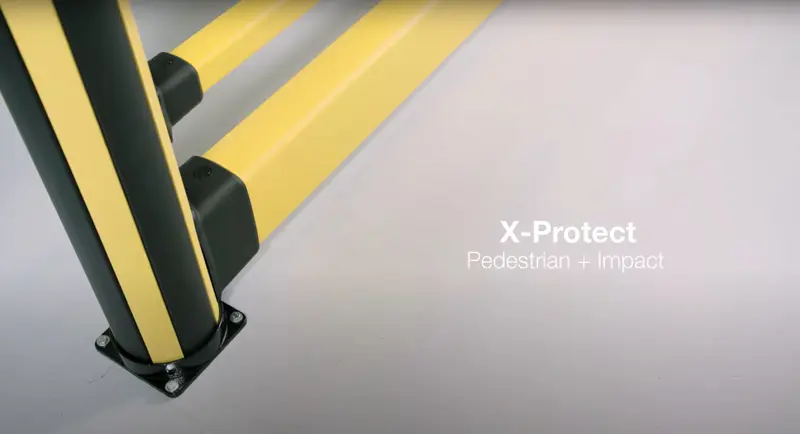

X-Protect Pedestrian with impact

Assembly instruction

X-Protect | Impact protection

Brochure

X-Protect Technical | Impact protection

Brochure

Product information

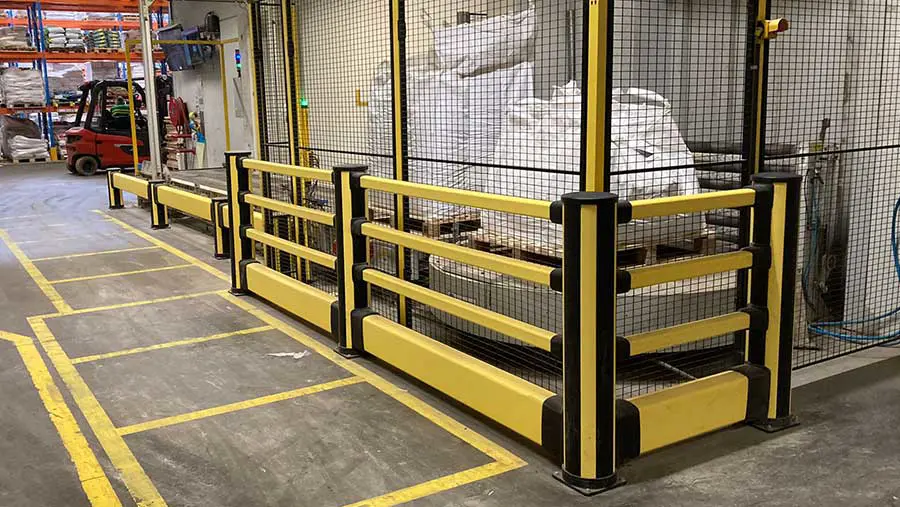

Use the X-Protect Pedestrian + Impact barrier configuration to protect walkways from medium duty vehicles where there is an increased risk of ground level impacts. It is also possible to combine with a pedestrian gate. The pedestrian gate is self closing, provided with a universal handle and width is adjustable from 690-1210 mm.

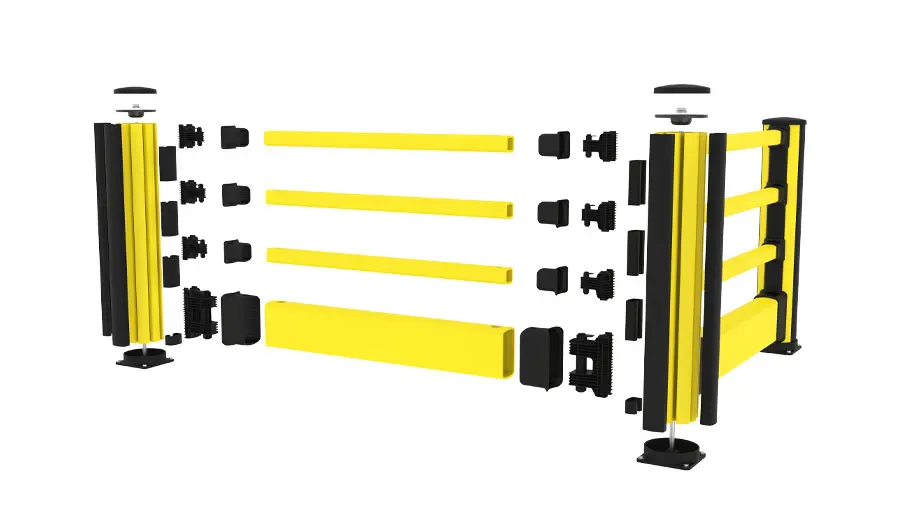

X-Protect is a unique approach to safety barriers. Unrivalled modularity, using only a few system components and damping that is built in to create a barrier system that changes with your work place. X-Protect allows rapid transformation, repair or replacement of existing barriers and bespoke configurations are limitless.

This configuration is compatible with the floor barrier.
