Impact barriers

Double impact

3D

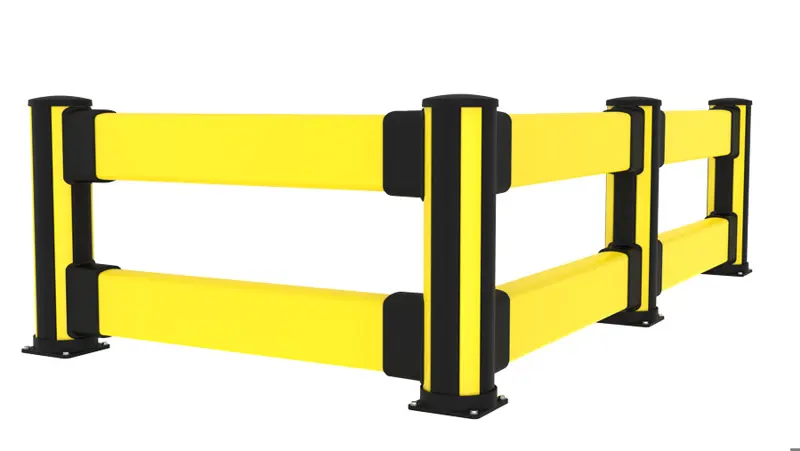

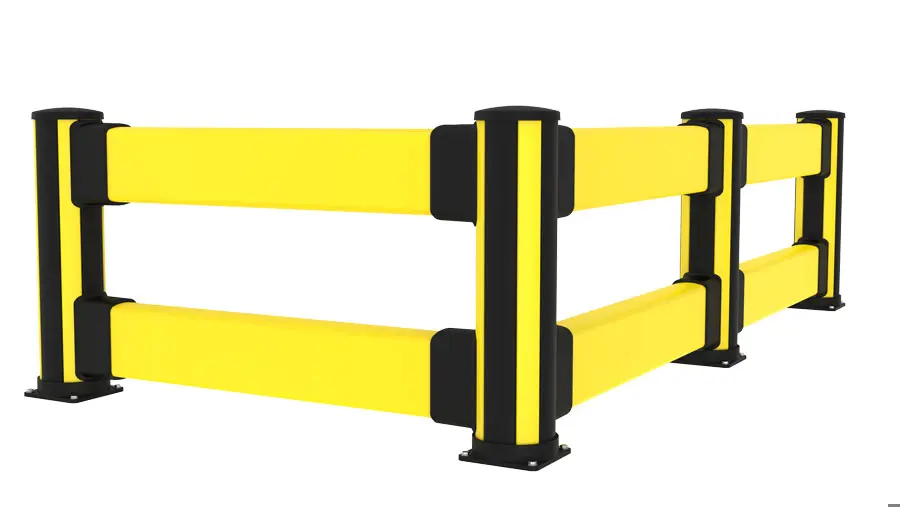

Use the X-Protect Double Impact Barrier configuration to protect structures from high level, heavy duty impacts. It is one of our strongest Impact protection configurations. Our modular rails and bollards allow for damaged or worn parts to be replaced at a component level. If you need to replace...

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

CAD Article Description Height (mm) Length (mm) CC (mm) Color
BCE0-087-I200 Double Impact end 870 Zinc Yellow (RAL 1018)
Graphite Black (RAL 9011)
1
BCE1-087-I200 Double Impact end 870 Zinc Yellow (RAL 1018)
BCM0-087-I200 Double Impact mid 870 Zinc Yellow (RAL 1018)
Graphite Black (RAL 9011)
1
BCM1-087-I200 Double Impact mid 870 Zinc Yellow (RAL 1018)
BCC0-087-I200 Double Impact corner 870 Zinc Yellow (RAL 1018)
Graphite Black (RAL 9011)
1
BCC1-087-I200 Double Impact corner 870 Zinc Yellow (RAL 1018)
RCI1-027-0050 Impact rail 270 500 Zinc Yellow (RAL 1018)
RCI1-047-0070 Impact rail 470 700 Zinc Yellow (RAL 1018)
RCI1-077-0100 Impact rail 770 1000
RCI1-127-0150 Impact rail 1270 1500 Zinc Yellow (RAL 1018)
RCI1-227-0250 Impact rail 2270 2500 Zinc Yellow (RAL 1018)
RCI1-277-0300 Impact rail 2770 3000 Zinc Yellow (RAL 1018)
RCI1-177-0200 1770 2000 Zinc Yellow (RAL 1018)
RCI1-064-0087 Impact rail 640 870 Zinc Yellow (RAL 1018)
RCI1-067-0090 Impact rail 670 900 Zinc Yellow (RAL 1018)
RCI1-197-0220 Impact rail 1970 2200 Zinc Yellow (RAL 1018)
RCI1-201-0224 Impact rail 2010 2240 Zinc Yellow (RAL 1018)
RCI1-074-0097 Impact rail 740 970 Zinc Yellow (RAL 1018)
RCI1-207-0230 Impact rail 2070 2300 Zinc Yellow (RAL 1018)
RCI1-211-0234 Impact rail 2110 2340 Zinc Yellow (RAL 1018)
RCI1-217-0240 Impact rail 2170 2400 Zinc Yellow (RAL 1018)

Downloads

X-Protect Double impact

Assembly instruction

X-Protect | Impact protection

Brochure

X-Protect Technical | Impact protection

Brochure

Product information

Use the X-Protect Double Impact Barrier configuration to protect structures from high level, heavy duty impacts. It is one of our strongest Impact protection configurations.

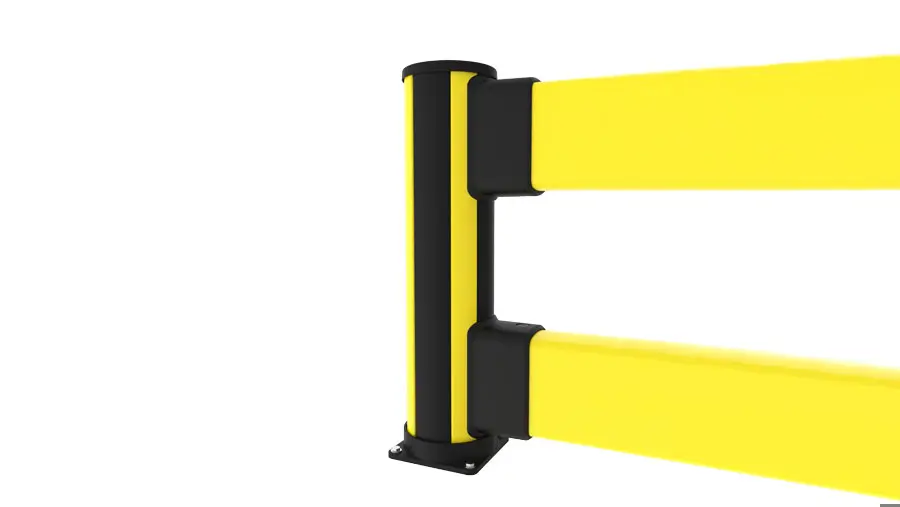

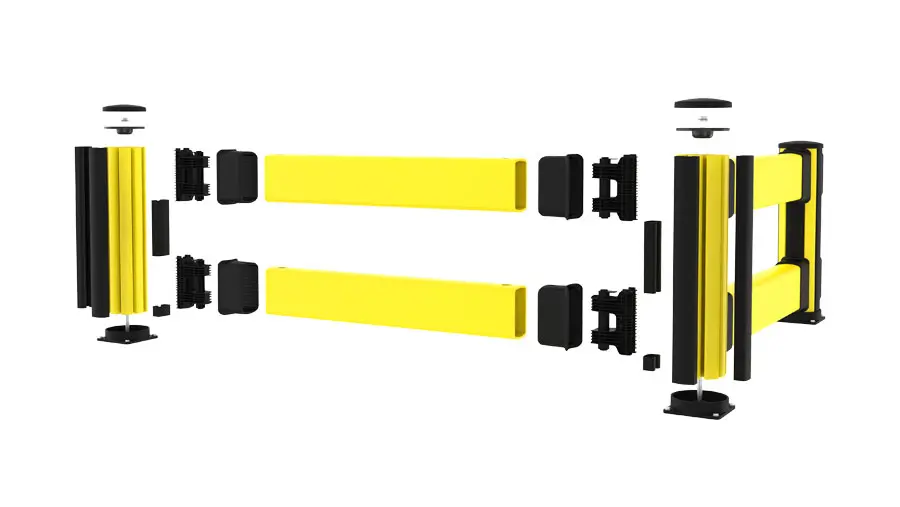

Our modular rails and bollards allow for damaged or worn parts to be replaced at a component level. If you need to replace any component - it is just a slide away.

X-Protect is a unique approach to safety barriers. Unrivalled modularity, using only a few system components and damping that is built in to create a barrier system that changes with your work place. X-Protect allows rapid transformation, repair or replacement of existing barriers and bespoke configurations are limitless.
